Fujinon 6mm f/1.8 and 10.5mm f/3.5 Patents Found

By Louis Ferreira | Published: August 12, 2025

Patents were found for Fujinon 6mm f/1.8 and 10.5mm f/3.5 lenses. You can check out the patent below:

overview

[Publication number] P2025117248
[Release date] 2025-08-12
[Title of Invention] Imaging lens and imaging device
[Application number] P 2024011990
[Application date] 2024-01-30
[Applicant]
[Identification number] 306037311
[Name] Fujifilm Corporation
An imaging lens that has a reduced overall length of the lens system and good optical performance, and an imaging device that includes this imaging lens are provided.
BACKGROUND ART
[0002]
Conventionally, lens systems described in Patent Documents 1 and 2 below have been known as imaging lenses used in digital cameras and the like.
[0004]
There is a demand for an imaging lens that has a shorter overall lens system length and good optical performance, and these requirements are becoming higher every year.
[0005]
An object of the present disclosure is to provide an imaging lens that has a reduced overall length of the lens system and good optical performance, and an imaging device that includes this imaging lens.

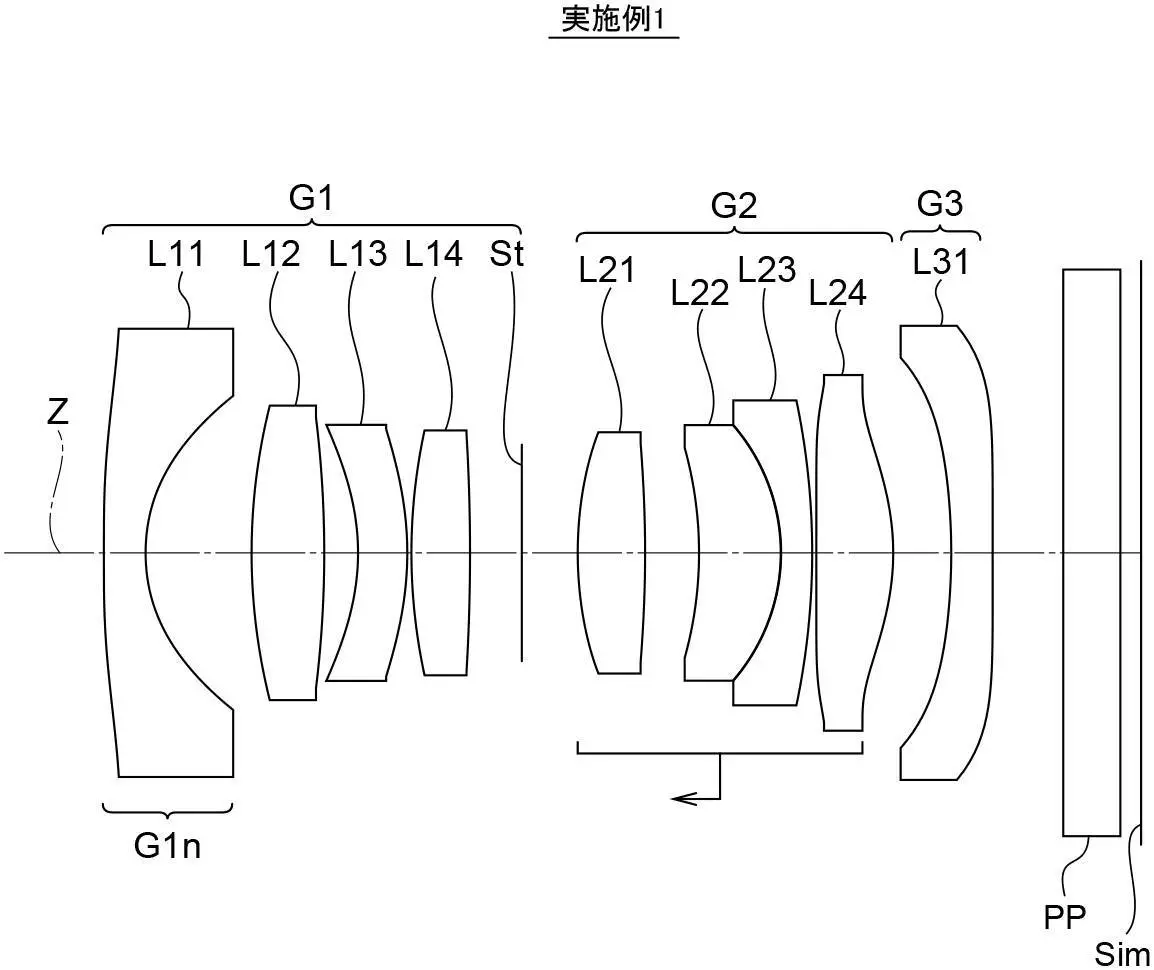

Example 1

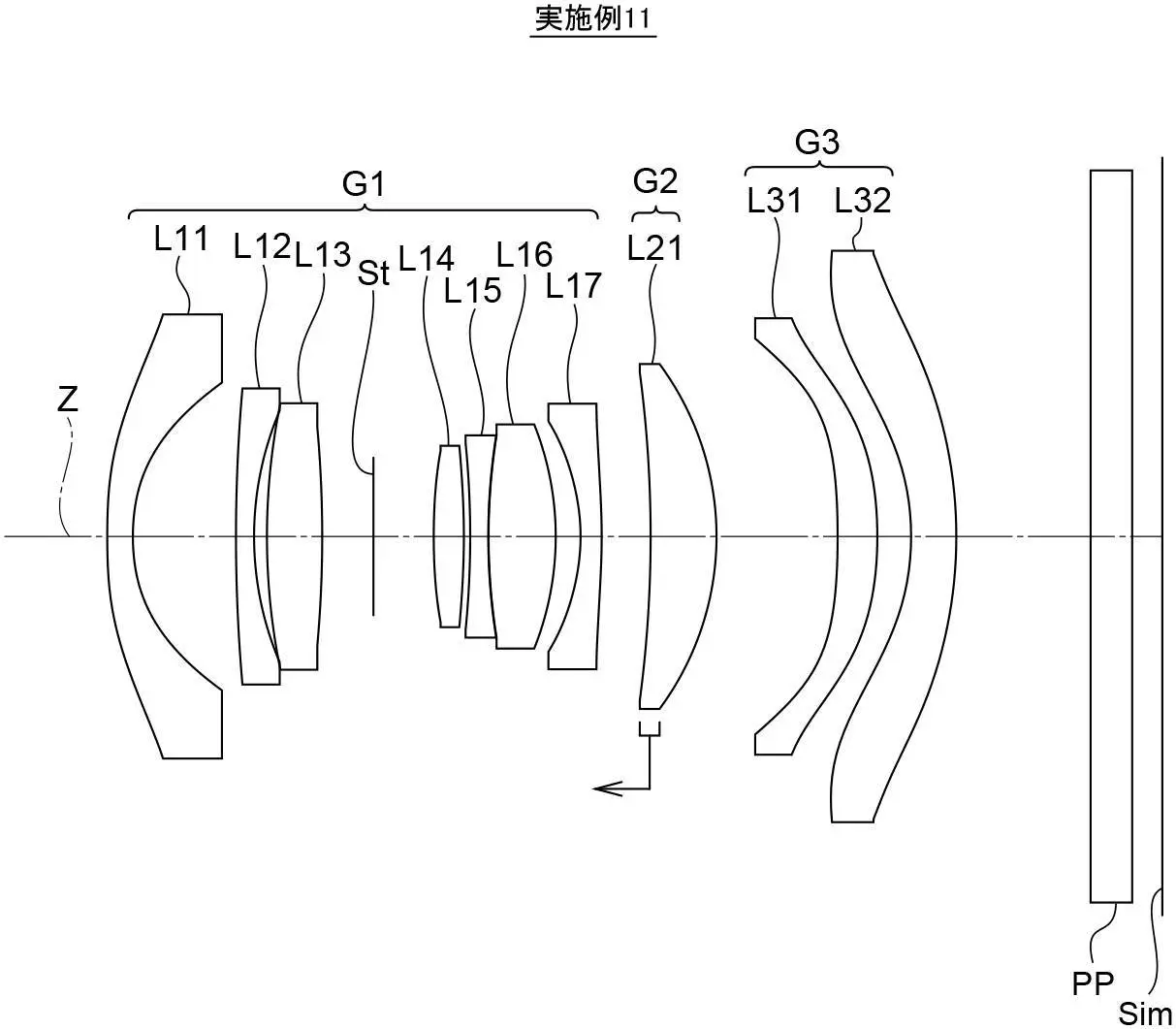

Example 11
