Advanced Optical Engineering Analysis: Fujifilm Patent P2026091132 and the GFX Eterna Medium Format Cinematic Ecosystem

Advanced Optical Engineering Analysis: Fujifilm Patent P2026091132 and the GFX Eterna Medium Format Cinematic Ecosystem

The publication of Fujifilm Patent P2026091132 on June 3, 2026 (initially filed on November 22, 2024), outlines the highly complex optical architectures required to project a zoomable, constant-aperture image circle across a medium format sensor. The mathematical embodiments detailed within the filing directly correlate with the commercial announcement of the Fujinon GF32-90mm T3.5 PZ OIS WR. This lens, launched alongside the $16,499.95 Fujifilm GFX Eterna 55 cinema camera, signifies a modernization of medium format cinematography characterized by the integration of power zoom (PZ) servos, optical image stabilization (OIS), and advanced autofocus mechanisms.

Deconstructing Patent P2026091132: Theoretical Frameworks

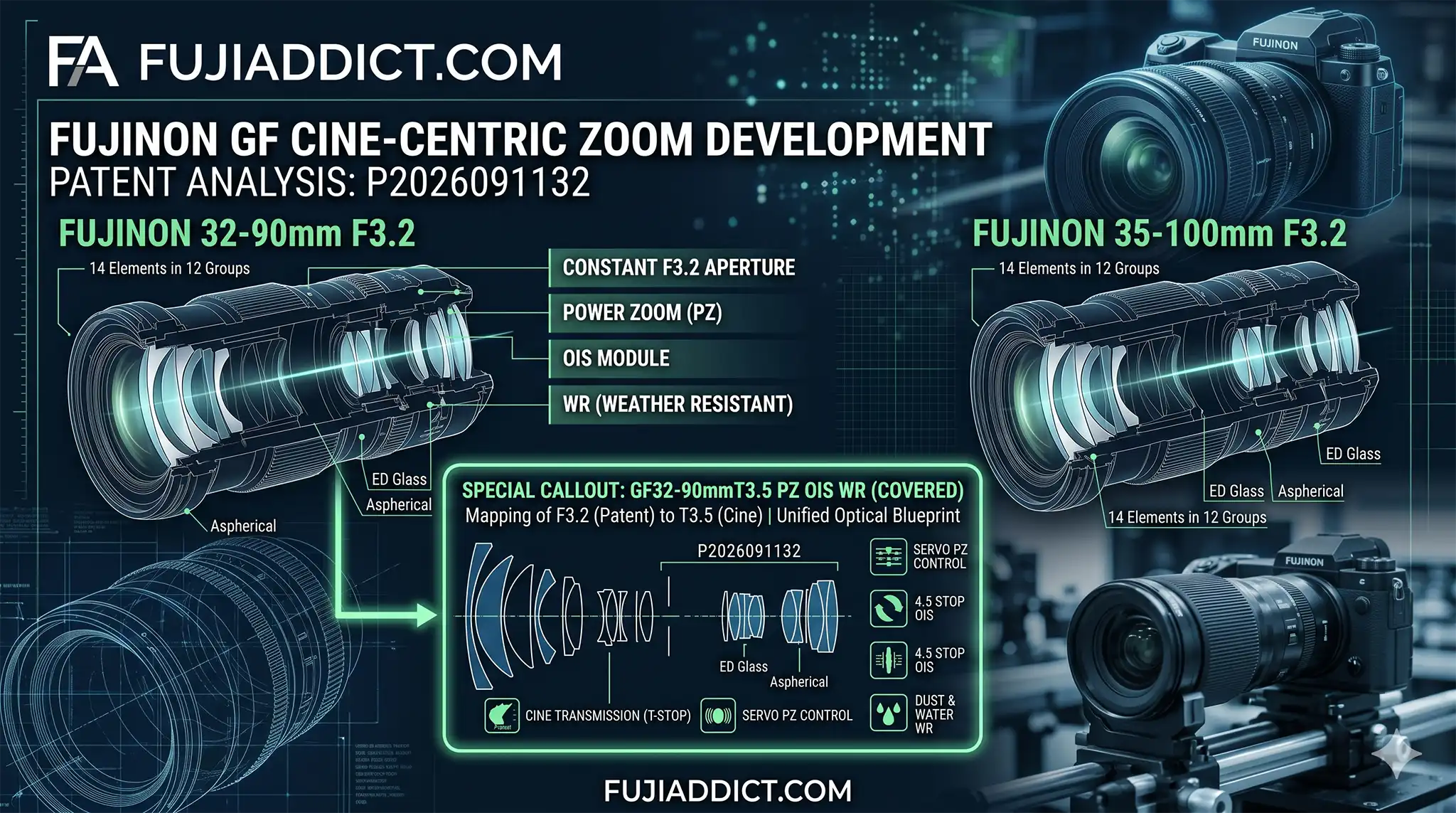

Patent P2026091132, titled “Zoom Lens and Imaging Device,” explicitly outlines the objective of engineering a zoom lens that balances compact physical dimensions with the optical performance required for a sensor diagonal exceeding 54mm while maintaining a constant geometric aperture. Two specific embodiments represent the viable commercial pathways.

Embodiment 1: The 32-90mm f/3.2 Architecture

Embodiment 1 is the theoretical precursor to the commercially realized GF32-90mm T3.5 PZ OIS WR. It specifies a focal length range spanning from 32.94mm to 87.33mm, providing an equivalent field of view of approximately 25-71mm on a 35mm full-frame standard. The mathematical parameters define a Half Angle of View ranging from 82.2 degrees to 32.0 degrees, confirming the design intent to illuminate the 55mm image circle required by the GFX Eterna’s open-gate recording modes.

The geometric aperture (F-number) in Embodiment 1 fluctuates nominally between f/3.19 and f/3.30. Maintaining this near-constant ratio requires the internal zoom groups to enact precise mechanical compensations, shifting the aperture diaphragm relative to the optical nodes as focal length increases.

Embodiment 4: The 35-100mm f/3.2 Architecture

Embodiment 4 describes a telephoto zoom configuration with a focal length range of 36.14mm to 97.51mm. The Half Angle of View ranges from 75.6 degrees to 28.4 degrees. Crucially, the patent specifies an absolute constant F-number of f/3.21 across the entire range.

While Embodiment 1 was selected for commercial production, achieving a mathematically perfect constant f/3.21 aperture at a 100mm focal length on a medium format sensor necessitates a front element significantly larger than the 32-90mm variant. The GF32-90mm lens utilizes an industry-standard 114mm front outer diameter and a 111mm internal filter thread, weighing 2.1kg (4.6 lbs). Pushing the telephoto reach to 100mm at a constant aperture would likely force the front diameter beyond the 114mm cinema standard and exceed optimal weight thresholds.

Light Transmission: Resolving the F-Stop to T-Stop Conversion

Patent P2026091132 details an optical system operating at a geometric f/3.2, while the commercial lens is branded as a constant T3.5. The F-number assumes a perfectly transparent optical system. However, the GF32-90mm features a dense internal structure comprising 25 individual lens elements arranged into 19 groups. Light interacting with these interfaces experiences transmission loss, despite the application of Fujifilm’s Super EBC multi-layer anti-reflective coatings.

In cinematography, absolute exposure consistency is required to prevent temporal inconsistencies during editing. The T-stop (Transmission-stop) measures the actual amount of light that successfully exits the rear element. By calibrating the lens as a constant T3.5, Fujifilm guarantees that the volume of light striking the sensor remains identical whether set to 32mm or 90mm.

Optical Architecture and Aberration Suppression

The GF32-90mm must service the GFX Eterna 55’s 102-megapixel BSI CMOS sensor (43.8mm x 32.9mm). Resolving detail across a 54.77mm diagonal requires specific optical corrections within the 25-element formula.

• Aspherical Elements: Three precision-molded aspherical elements counteract spherical aberration. They force incoming light rays to converge on a singular focal plane, ensuring uniform resolving power from the center to the extreme corners of the frame, which is essential for open-gate recording modes.
• Extra-low Dispersion (ED) Elements: Three ED elements mitigate chromatic aberration by reducing the separation of the color spectrum caused by varying refractive indices. Neutralizing axial and transverse chromatic aberrations is vital for chroma-keying and aggressive color grading workflows.

Mechanical Engineering for the Cinematic Ecosystem

The mechanical construction of the GF32-90mm deviates significantly from photographic equivalents to meet professional production standards.

• 13-Blade Aperture Diaphragm: The 13-blade diaphragm ensures a circular aperture opening for organic bokeh, stopping down from T3.5 to T32. This configuration yields 26 fine, diffuse diffraction spikes (sunstars), compared to the harsher polygons produced by 7 or 9-blade designs.
• Physical Dimensions and Gearing: Measuring 222.5mm in length and weighing 2.1kg, the lens features a 114mm front outer diameter for clamp-on matte boxes and accepts 111mm screw-on filters. The zoom, focus, and iris rings utilize 0.8 MOD pitch gearing for compatibility with Follow Focus, Iris, and Zoom (FIZ) motors. The geared rings provide absolute mechanical repeatability, avoiding the non-linear focus-by-wire mechanics common in still photography.

Electro-Mechanical Innovations: Power Zoom, OIS, and Autofocus

The GF32-90mm integrates electro-mechanical features rarely found in dedicated cinema zoom lenses.

• Power Zoom (PZ): High-speed internal servo motors allow variable-speed zooming manipulated via the camera body, a switch on the lens, or a broadcast-standard 12-pin terminal. The manual 0.8 MOD zoom ring retains zero latency.
• Optical Image Stabilization (OIS): Internal OIS mitigates high-frequency micro-vibrations, facilitating handheld use in dynamic environments.
• Autofocus (AF): Maintaining manual focus on a 102MP medium format sensor with a shallow depth of field is challenging. A high-speed internal rear-focus autofocus system enables tracking moving subjects without shifting the lens’s center of gravity, maintaining balance on stabilization rigs.

Synergy with the GFX Eterna 55

The GFX Eterna 55’s sensor is over 40% larger than the standard 36mm x 24mm full-frame format. The GF32-90mm physically projects a 32-90mm focal length, dictating depth of field and compression, while the large sensor yields a wider 25-71mm equivalent field of view. The lens is optically corrected to illuminate the entire 55mm image circle for the Eterna’s open-gate 4:3 8K recording mode, allowing post-production extraction of various aspect ratios from a single file. It is designed to resolve the colorimetry required for Fujifilm’s Film Simulations, F-Log2 C color space, and 3D LUTs.

Competitive Landscape: Cinematic vs. Photographic Optics

The design philosophy of the cinematic GF32-90mm contrasts sharply with photographic medium format zooms, such as the Hasselblad XCD 35-100mm f/2.8-4 E, which covers an identical 44 x 33mm sensor.

The Hasselblad prioritizes portability (894 grams) by utilizing a variable aperture (f/2.8 to f/4) and a simplified 16-element formula. In cinematography, a variable aperture causes exposure shifts during zooming. To secure parfocal behavior and constant exposure, the GF32-90mm utilizes a massive 25-element architecture, driving the filter thread up to 111mm and the total weight to 2.1kg (4.63 lbs).

The Premista Lineage and Future Expansion

The GF32-90mm T3.5 PZ OIS WR inherits optical and mechanical technologies from Fujifilm’s Premista line of large-format cinema lenses, adapting broadcast-tier performance into a $5,999.95 form factor. Furthermore, the revelations within Patent P2026091132 provide a roadmap for the GFX Eterna ecosystem. The existence of Embodiment 4 (the 35-100mm f/3.2 design) indicates that Fujifilm has already mapped the mathematics for extended focal ranges, suggesting the potential for companion cine zooms—such as an 80-200mm telephoto or a 14-30mm ultra-wide—engineered with identical 0.8 MOD gearing and 114mm front diameters to complete the optical set.
